Wall-Mounted Series

Wall-Mounted Series

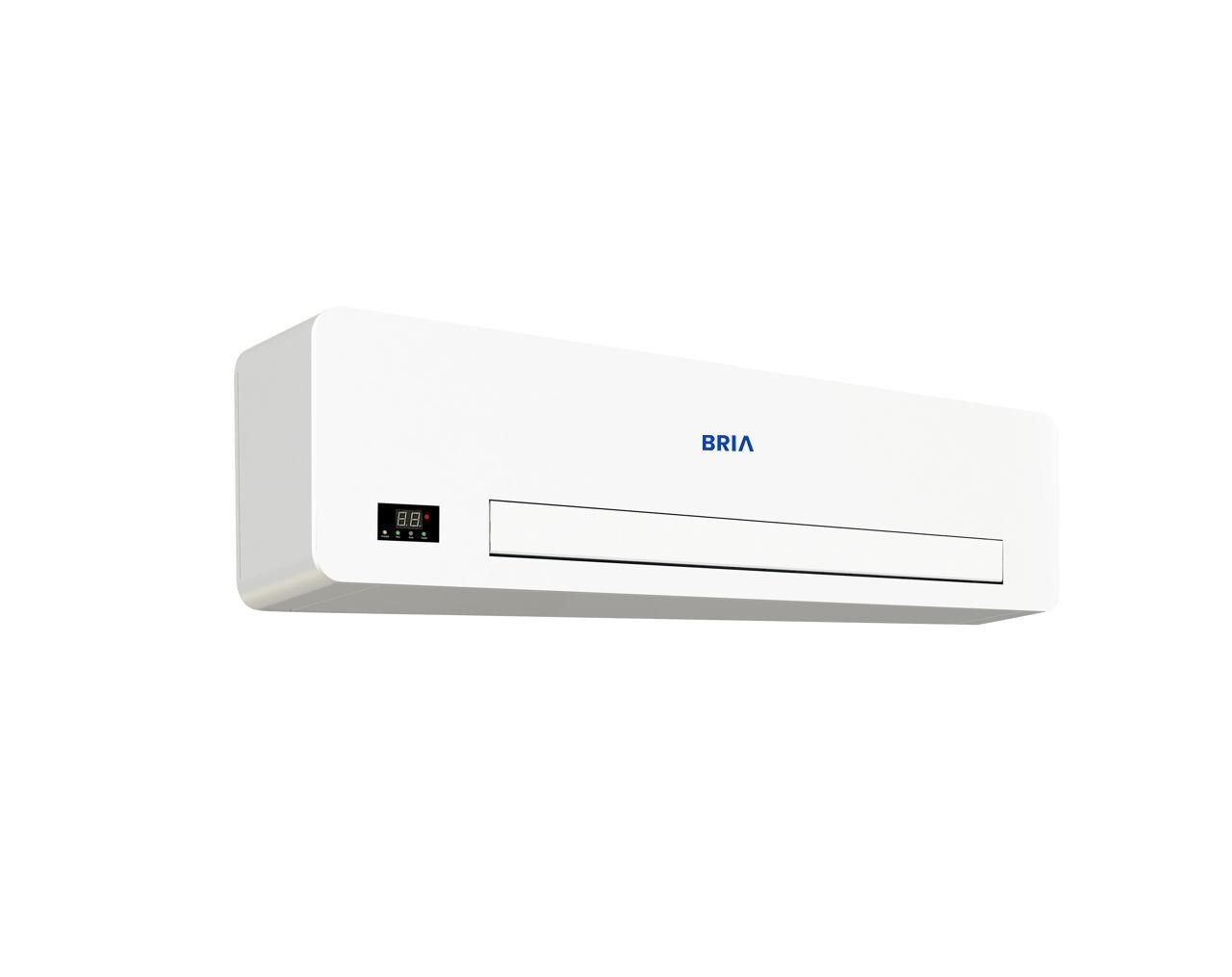

The Wall-Mounted Series is a sleek chilled water hydronic unit designed for efficient front air discharge and elegant wall installation. Ideal for spaces without false ceilings, it offers quiet performance, smart controls, and easy maintenance for modern commercial and residential interiors.

Inquire Now

Applications

Wall-mounted chilled water hydronic unit
Decorative front panel suits any interior décor
No false ceiling required for installation
Ideal for shops, restaurants, offices, and hostel rooms

Technical Specification

Wall-Mounted Series

Brand

BRIA

Category

Hi-Wall

Model Range

BHF-12 A

Series

Standard Cooling

Parameters	Label	Sub	Unit	BHF-12 A
Air Flow	H	—	CMH	680
	M	—	CMH	550
	L	—	CMH	340
Cooling Capacity	H	TH	kW	3.6
Cooling Capacity	H	SH	kW	2.52
Water Flow	—	—	lph	630
Sound Pressure Level	H	—	dB(A)	41
	M	—	dB(A)	38
	L	—	dB(A)	34
Note Cooling Condition: Entering water 7°C, Outlet water 12°C, Entering air temp. 27°C DBT / 19.5°C WBT Heating Condition: Entering water 60°C, Entering air temp 21°C DBT, water flow same as cooling Noise is tested in full-anechoic test room at distance of 1m. H: High speed; M: Medium speed; L: Low speed; TH: Total cooling; SH: Sensible cooling Specification are subject to change due to continuous R&D upgradation
