Ceiling Hung / Floor Standing Series

Ceiling Hung / Floor Standing Series

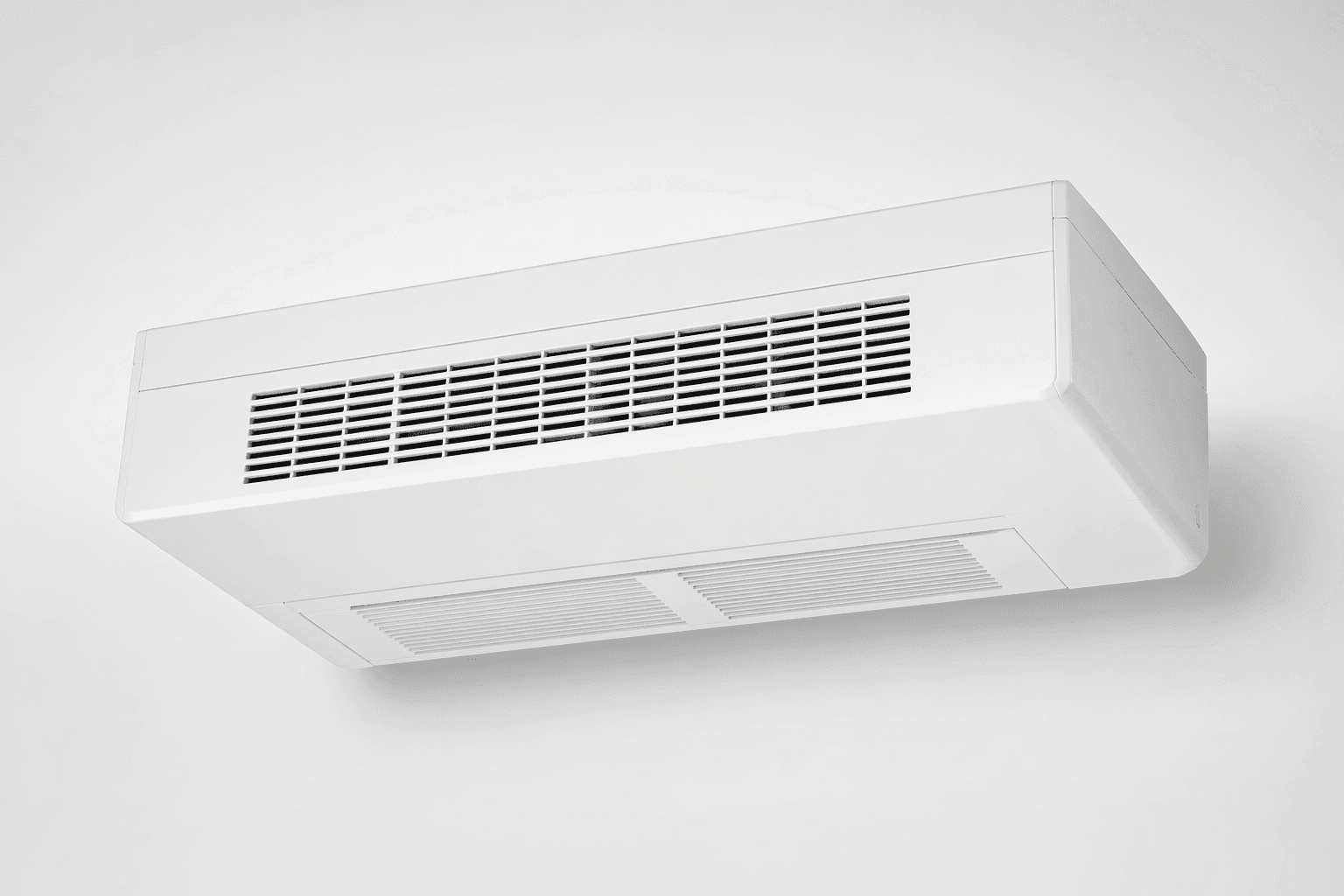

The Ceiling Hung / Floor Standing Series is a versatile chilled water fan coil unit designed for flexible installation in ceiling-hung, floor-standing, or wall-mounted configurations. With an elegant decorative casing and reliable performance, it is ideal for commercial and institutional spaces requiring adaptable climate control solutions.

Inquire Now

Applications

Ceiling hung, floor standing, and wall mounted installation options
Decorative powder-coated GI steel front casing
Blends seamlessly with modern interiors
Ideal for cooling and heating in offices, institutes, and hospitals

Technical Specification

Ceiling Hung / Floor Standing Series (3 Rows)

Brand

BRIA

Category

Floor Standing

Model Range

BFF-3R-2P-300

Series

Standard Cooling

Parameters	Label	Sub	Unit	BFF-3R-2P-300
Air Flow	H	—	CMH	504
	M	—	CMH	432
	L	—	CMH	342
Cooling Capacity	H	TH	kW	2.73
Cooling Capacity	H	SH	kW	1.96
Water Flow	—	—	lph	469
Sound Pressure Level	H	—	dB(A)	43
	M	—	dB(A)	39
	L	—	dB(A)	33
Note Cooling Condition: Entering water 7°C, Outlet water 12°C, Entering air temp. 27°C DBT / 19.5°C WBT Heating Condition: Entering water 60°C, Entering air temp 21°C DBT, water flow same as cooling Noise is tested in full-anechoic test room at distance of 1m. Airflow & performance data is based on ESP 75Pa for model 400 to 1600 & ESP 125Pa for model 2000 to 2800 H: High speed; M: Medium speed; L: Low speed; TH: Total cooling; SH: Sensible cooling Specification are subject to change due to continuous R&D upgradation
